Palladium C5
Jammer detector
Product Description

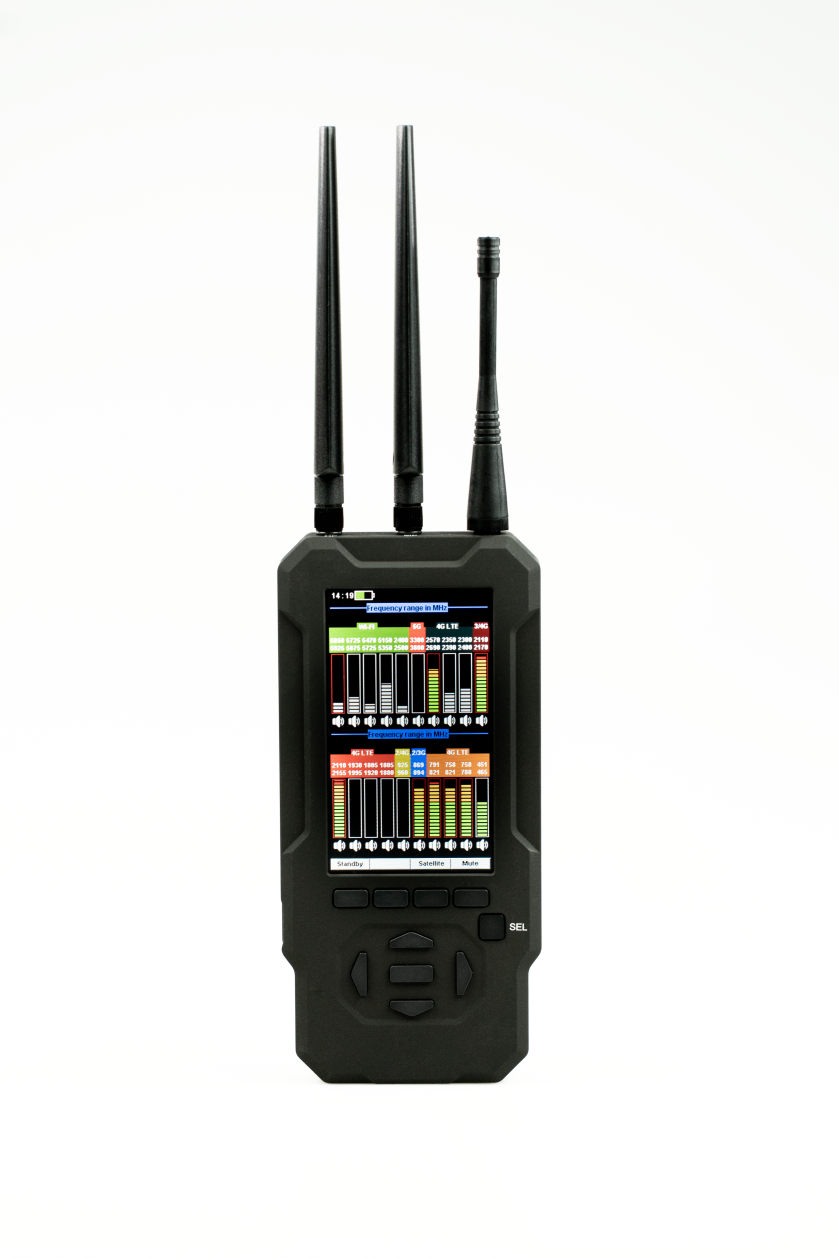

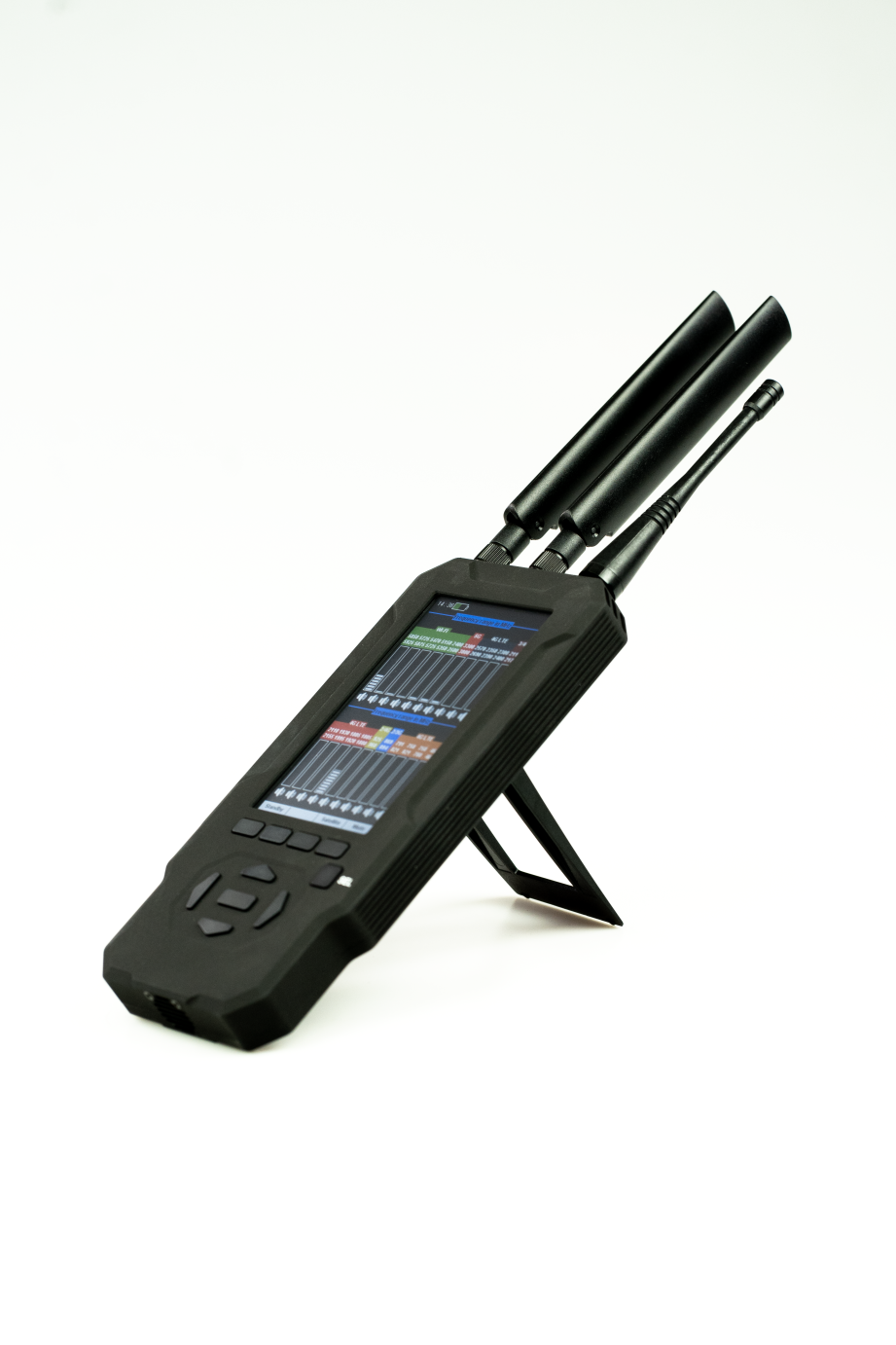

The Palladium C5 is a compact, high-precision RF jammer detector developed for law enforcement and security professionals. It monitors 40 independent bands across cellular, Wi-Fi, GNSS and satellite-phone frequencies, enabling operators to identify interference affecting communications and navigation services.
The 40 bands are arranged across dedicated Wi-Fi & Mobile and Satellite monitoring screens, with 20 bands visible on each. A high-resolution full-colour display provides real-time frequency readouts, status icons and bar-graph levels so activity can be assessed quickly.
Each band has an independently adjustable valid-signal threshold from 0% to 100%. Operators can calibrate the detector to the local RF environment and activate or mute alarms for individual bands while continuing to view their signal levels.
High-sensitivity mode increases sensitivity by approximately 6.5 dB to help detect lower-power transmitters and jammers. When a signal crosses the selected threshold, the affected band flashes red and white and the operator is alerted by a variable-speed beep, vibration or both.
Three dedicated SMA antennas cover low, middle and high frequency ranges. The internal LiPo battery recharges through USB-C, while standby mode switches off the display to save power or support discreet use without interrupting monitoring.
Key Features
- Simultaneous monitoring of 40 independent bands covering GSM, 2G, 3G, 4G, sub-6 GHz 5G, 2.4/5 GHz Wi-Fi, GPS, GLONASS, Galileo, BeiDou, QZSS and satellite phones.
- Two 20-band menus dedicated to Wi-Fi and mobile networks, and to GNSS and satellite services.
- Independent 0% to 100% threshold control and alarm activation or muting for every band.
- Sensitivity of -55 dBm, dynamic range greater than 35 dB and an approximately +6.5 dB high-sensitivity mode.
- Full-colour LCD with real-time bar graphs, frequency readouts and visual alarm indication.
- Selectable alert modes: mute, variable-speed beep, vibration, or beep and vibration.
- USB-C rechargeable LiPo battery, standby with monitoring active, and operation from -10°C to +40°C.
